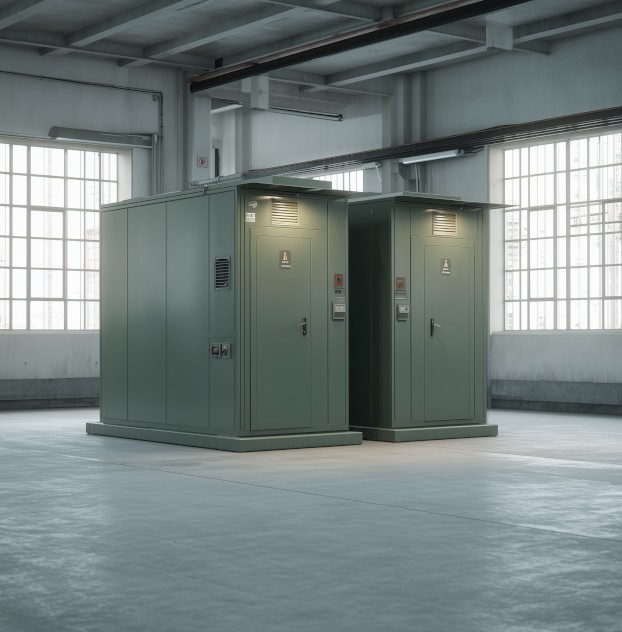

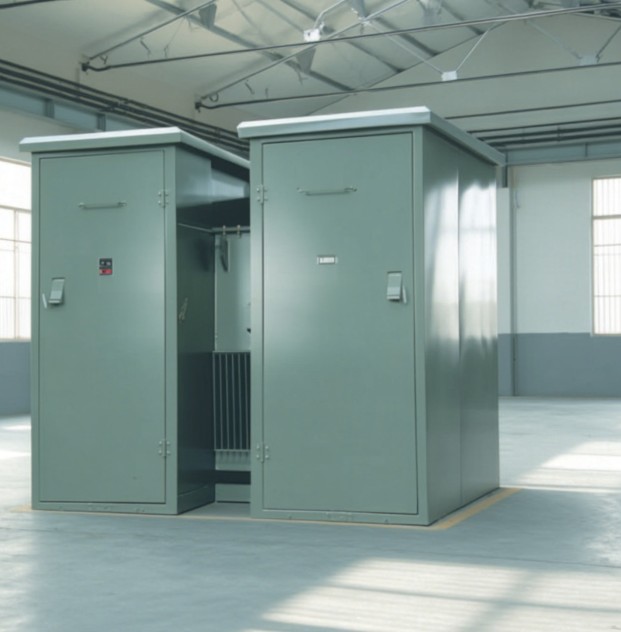

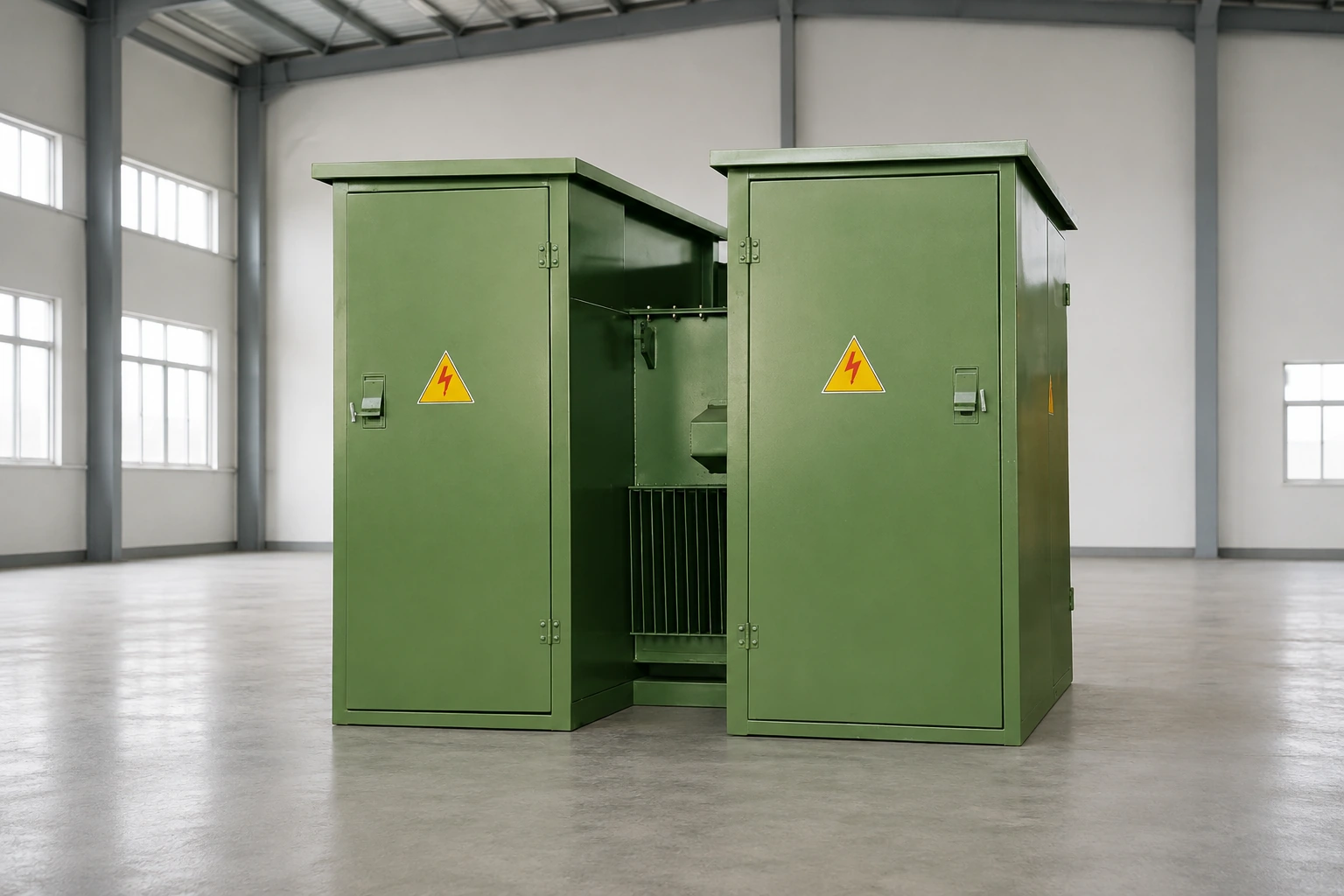

组合式变压器

Combined Power Transformer

组合式变压器
紧凑与高效

本产品将高压开关设备、变压器及低压配电装置有机结合为一体,具备结构紧凑、能效高和运行可靠的特点,是现代供配电系统的理想选择。

在设计与制造中充分考虑安装便利性与环境适应性,广泛应用于城市电网、住宅小区、商业中心及工矿企业。

  • 高压、变压、低压一体化设计
  • 占地面积小,安装灵活
  • 运行可靠,维护量低
  • 适应多种应用场景

Combined Transformer
Compact and Efficient

This product combines HV switchgear, transformer, and LV distribution in one compact unit, offering high efficiency and reliable performance—an ideal solution for modern power distribution.

Engineered for easy installation and environmental adaptability, it is widely applied in urban grids, residential areas, commercial centers, and industrial facilities.

  • Integrated HV switchgear, transformer, and LV distribution
  • Small footprint and flexible installation
  • Reliable operation with low maintenance
  • Adaptable to various applications

电气性能参数
稳定与高效的核心指标

本产品在设计中充分考虑城市配电和工矿企业的运行需求,能够在不同电网条件下保持安全、稳定与高效的供电能力。

核心性能指标涵盖容量、电压等级、频率与调节方式,为配电系统的长期运行提供坚实保障。

  • 额定容量范围:100–2500 kVA
  • 频率:50 Hz / 60 Hz
  • 高压侧电压:6 kV / 10 kV / 35 kV
  • 低压侧电压:0.4 kV

Electrical Performance
Stable & Efficient Performance

This product is designed for urban distribution and industrial applications, ensuring safe, stable, and efficient power supply under varying grid conditions.

Key indicators include capacity, voltage, frequency, and regulation method, providing reliable support for long-term system operation.

  • Rated capacity range: 100–2500 kVA
  • Frequency: 50 Hz / 60 Hz
  • High-voltage side: 6 kV / 10 kV / 35 kV
  • Low-voltage side: 0.4 kV

运行环境与结构参数

本产品在结构设计中充分考虑了户外运行的需求,具备良好的密封性、防腐性与防护等级,可在长期户外复杂环境下保持稳定可靠的运行。

无论是在高温、低温、潮湿、盐雾或粉尘等工况条件下,设备都能安全工作,并符合国家及电力行业的相关标准。

  • 环境温度:-25 °C 至 +40 °C(极限 -40 °C 至 +50 °C)
  • 防护等级:IP23 / IP54(可选)
  • 外壳材质:铝锌钢板或不锈钢,具备防腐涂层

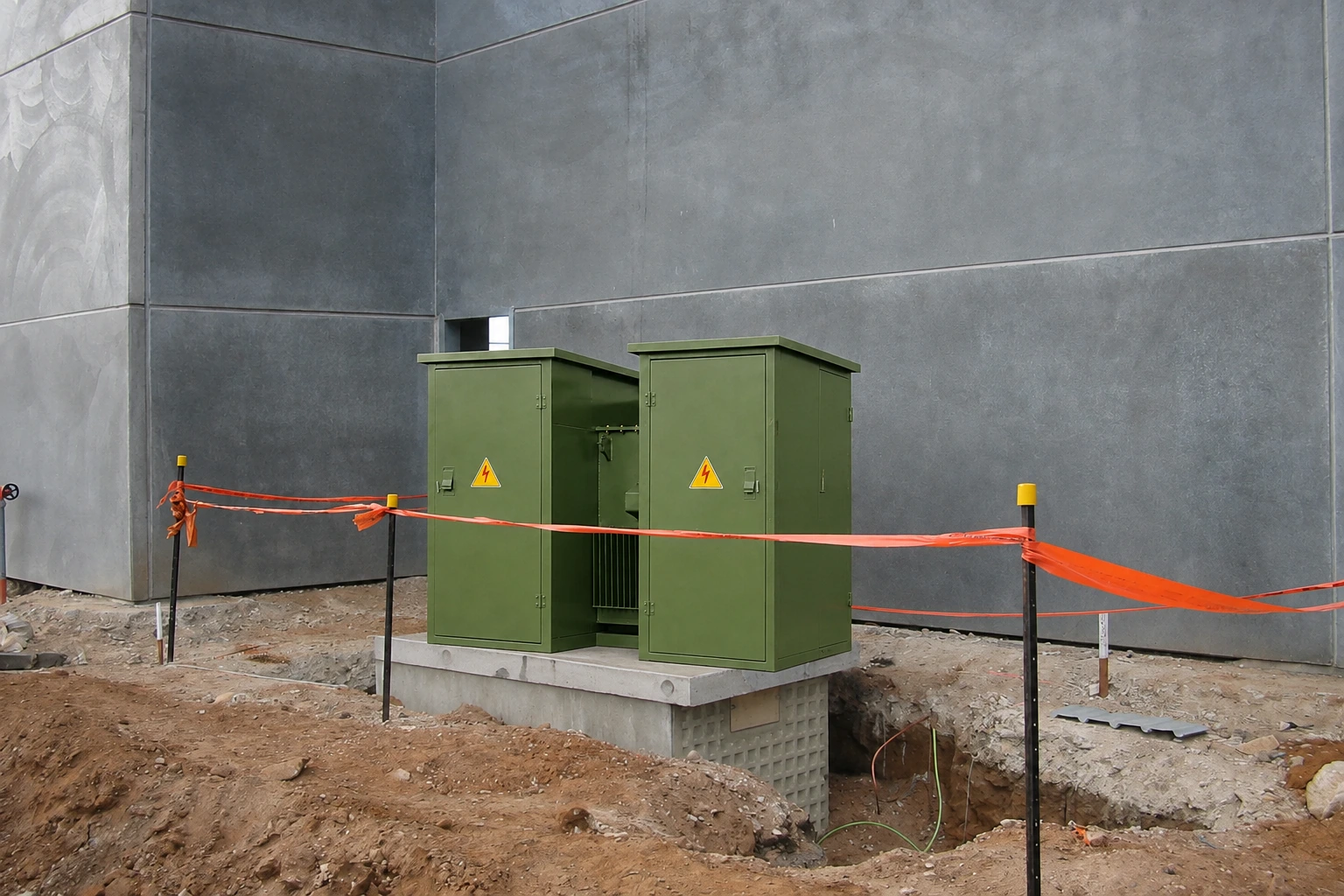

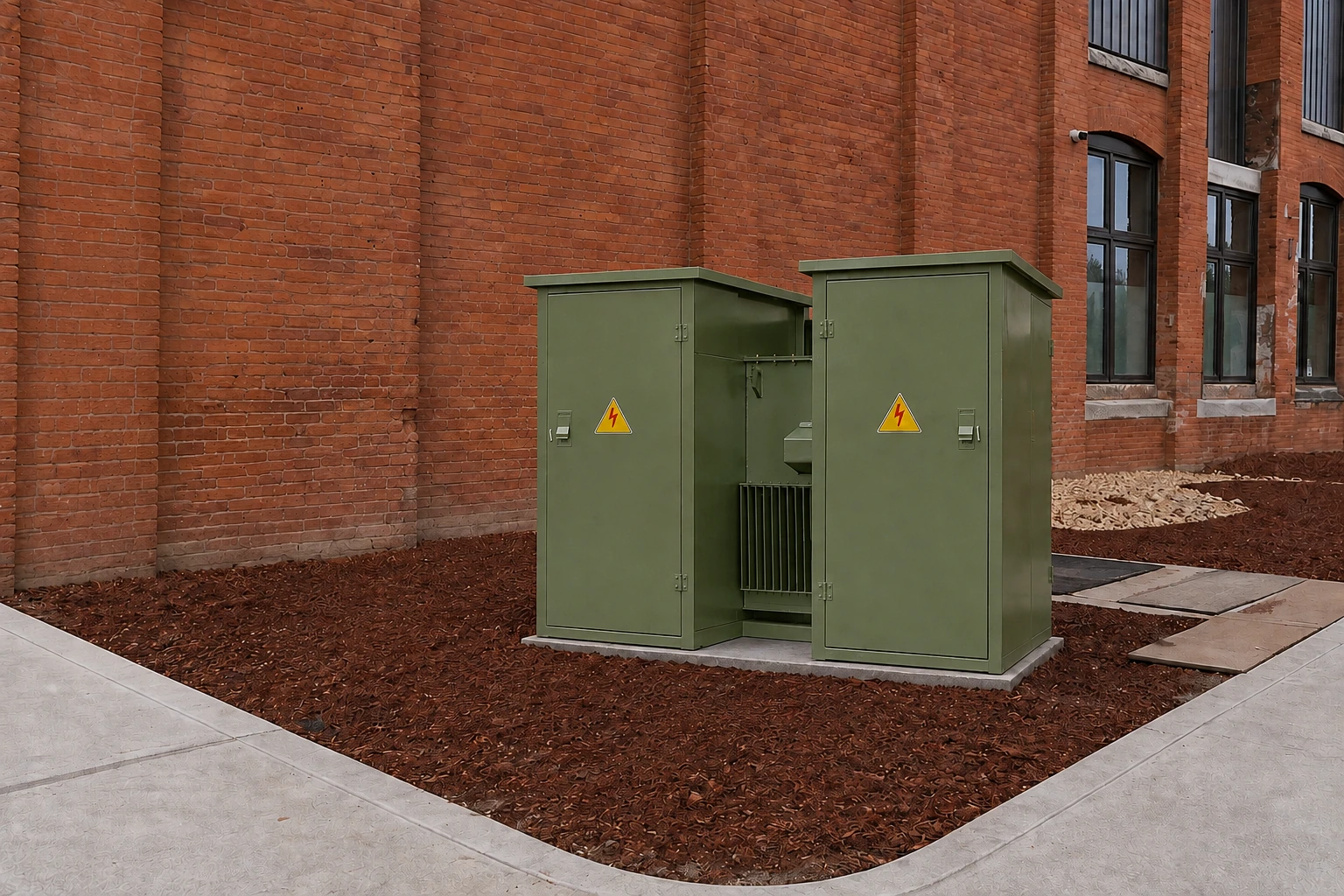

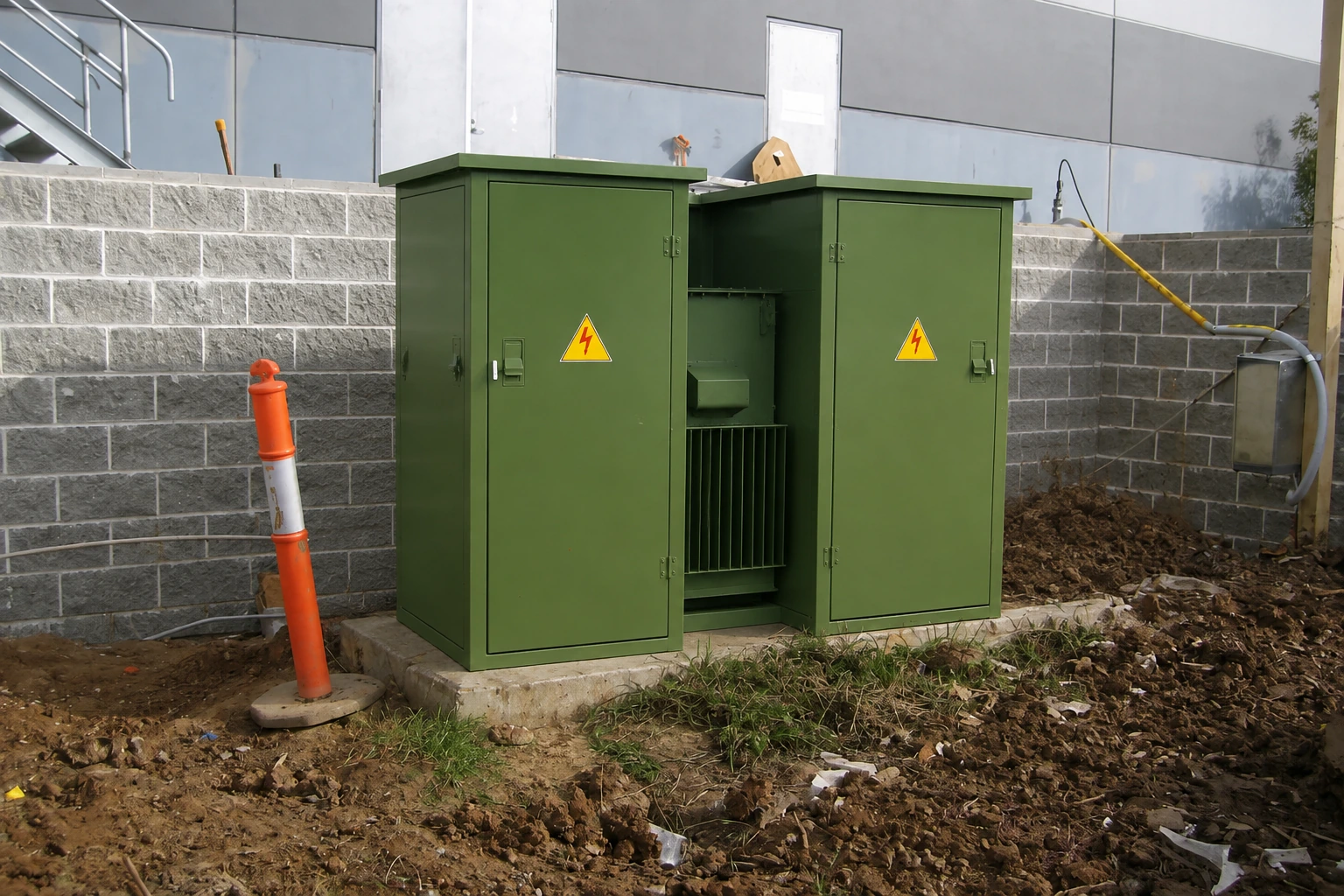

  • 安装方式:户外整体安装,运输与吊装便捷

Operating Conditions

Designed for outdoor use, this product offers reliable sealing, corrosion resistance, and protection rating to ensure long-term stable performance in harsh environments.

It operates safely under extreme temperature, humidity, salt fog, or dust, and meets national and power industry standards.

  • Ambient temperature: -25 °C to +40 °C (limit -40 °C to +50 °C)
  • Protection grade: IP23 / IP54 (optional)
  • Enclosure material: aluminized zinc steel or stainless steel with anti-corrosion coating
  • Installation: outdoor integral installation, easy for transport and lifting
