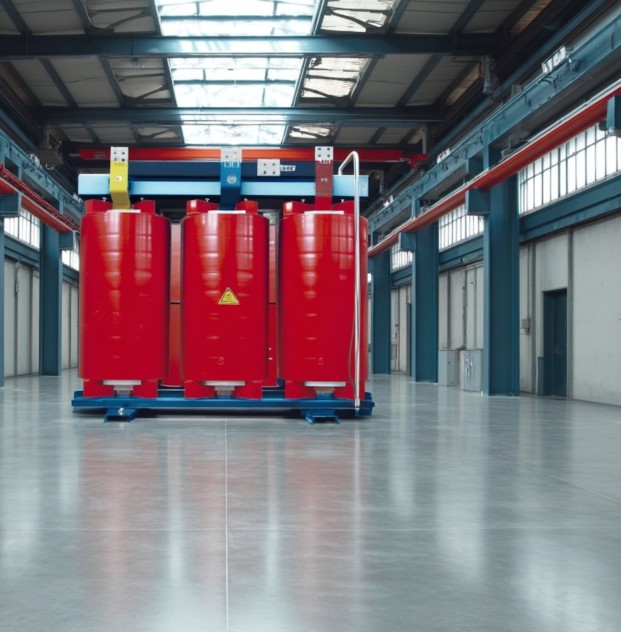

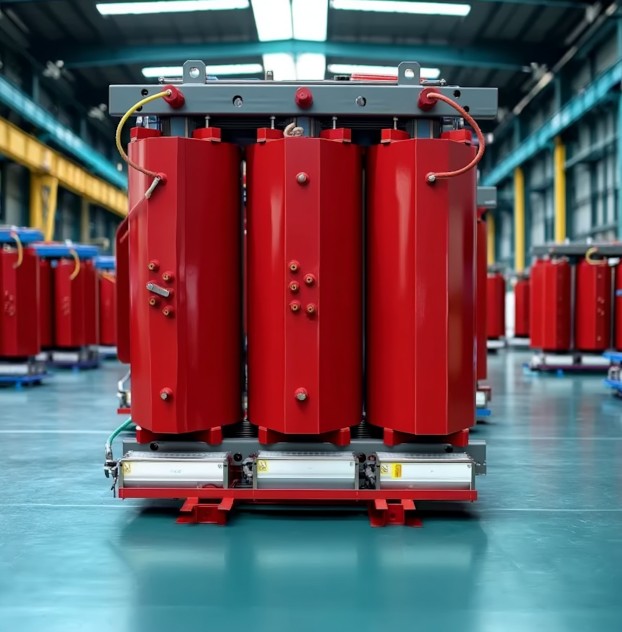

干式变压器

Dry-type Power Transformer

干式变压器
安全与环保

本产品作为配电与用电系统的重要设备,采用树脂浇注或环氧绝缘工艺,具备优良的安全性和环保特性,广泛应用于城市建设、商业中心及高层建筑。

在设计与制造中注重防火、低损耗和免维护性能,可在多种复杂环境下长期稳定运行。

  • 环保设计,无油绝缘,防火防爆
  • 低损耗、低噪音,运行经济
  • 免维护结构,使用寿命长
  • 适应多种安装环境

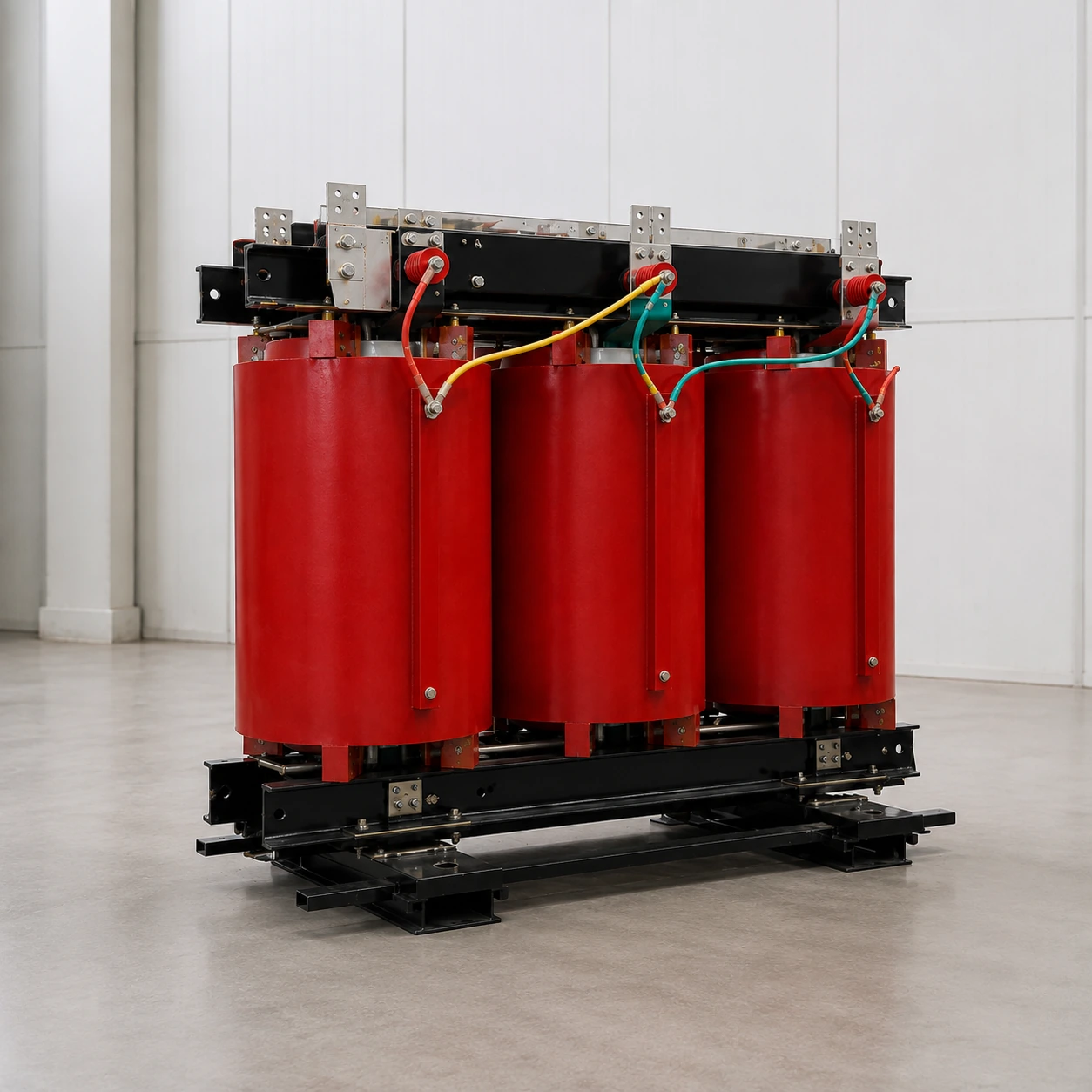

Dry-Type Transformer
Safety & Eco

This transformer, using resin or epoxy insulation, offers high safety and eco-friendly performance for urban infrastructure, commercial complexes, and high-rise buildings.

Fire-resistant, low-loss, and maintenance-free, it ensures long-term reliable operation in demanding environments.

  • Eco-friendly design, oil-free insulation, fire- and explosion-proof
  • Low loss and low noise, cost-effective operation
  • Maintenance-free structure with long service life
  • Adaptable to various installation environments

电气性能参数
稳定与高效的核心指标

本产品在设计中充分考虑配电系统的运行需求,确保在不同电网条件下均能保持安全、稳定与高效的输出。

核心性能指标涵盖容量、电压等级、频率与绝缘水平,为用户提供可靠的电能保障。

  • 额定容量范围:30–2500 kVA
  • 频率:50 Hz / 60 Hz
  • 输入电压:6 kV / 10 kV / 35 kV
  • 输出电压:0.4 kV

Electrical Parameters
Stable & Efficient

Designed to meet power distribution needs, this product ensures safe, stable, and efficient output under various grid conditions.

Key parameters include capacity, voltage, frequency, and insulation grade, ensuring reliable power supply.

  • Rated capacity range: 30–2500 kVA
  • Frequency: 50 Hz / 60 Hz
  • Input voltage: 6 kV / 10 kV / 35 kV
  • Output voltage: 0.4 kV

运行环境与结构参数

本产品在结构设计中充分考虑了城市配电、商业建筑及工业场所的多样化需求,具备良好的防火性能和环境适应能力,可在长期运行中保持稳定可靠。

无论是在高温、潮湿、粉尘或负荷波动等工况下,设备都能安全运行,并符合国家及行业的相关标准。

  • 冷却方式:AN/AF(自然风冷或强迫风冷)
  • 环境温度:-25 °C 至 +40 °C
  • 绝缘等级:F 级或 H 级
  • 防护等级:IP20 / IP23(可选)

Operating Environment and Structure

This product is designed to meet the diverse needs of urban distribution, commercial buildings, and industrial sites, with excellent fire resistance and environmental adaptability for long-term reliable operation.

It ensures safe performance under high temperature, humidity, dust, or load fluctuations, and complies with national and industry standards.

  • Cooling method: AN/AF (natural air cooling or forced air cooling)
  • Ambient temperature: -25 °C to +40 °C
  • Insulation class: F or H
  • Protection grade: IP20 / IP23 (optional)
