电脱盐高压引入装置

Electrostatic Desalting HV Inlet Device

电脱盐高压引入装置
安全与稳定

本产品作为电脱盐成套设备的重要接口部件,负责将高压电源安全、稳定地引入压力容器内部,确保电场在原油脱盐脱水过程中有效建立。

装置在设计上充分考虑了防爆和密封性能,可长期适应高温、高压及腐蚀性介质等复杂工况环境,保障系统稳定运行。

  • 高压密封引入结构
  • 防爆设计,满足 Zone 1 要求
  • 耐高温、耐腐蚀材料
  • 长期稳定运行能力

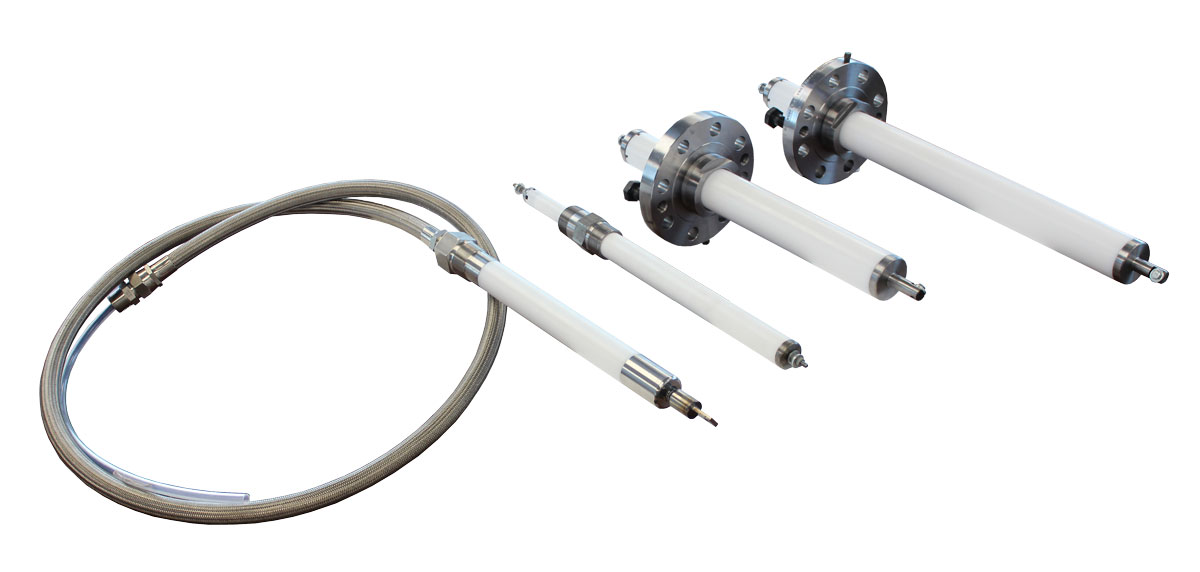

Desalter HV Feedthrough
Safe & Stable

This unit is a key part of the desalting system, safely bringing high-voltage power into the vessel to form an effective field for crude oil treatment.

Designed with explosion-proof sealing, it withstands heat, pressure, and corrosion for long-term reliable operation.

  • Sealed high-voltage entry
  • Explosion-proof, Zone 1 rated
  • Heat- and corrosion-resistant
  • Durable, stable performance

电气性能参数
稳定与高效的核心指标

装置在设计中充分考虑高压电场的稳定传输与密封安全,确保在各种电气条件下能够可靠运行。

核心性能指标涵盖耐压等级、绝缘强度与电流承载能力,为电脱盐过程中的电场建立提供坚实保障。

  • 额定电压范围:10–40 kV
  • 绝缘强度:≥ 70 kV(工频耐压)
  • 电流承载能力:50–500 A
  • 适用频率:50 Hz / 60 Hz

Electrical Parameters
Stable and Efficient Core Metrics

The unit is designed for stable high-voltage transmission and sealing safety, ensuring reliable performance under varied electrical conditions.

Key metrics cover voltage rating, insulation strength, and current capacity, providing solid assurance for field building in the desalting process.

  • Rated voltage: 10–40 kV
  • Insulation strength: ≥70 kV (AC withstand)
  • Current capacity: 50–500 A
  • Frequency: 50 Hz / 60 Hz

运行环境与结构参数

本装置在结构设计中充分考虑了油田及石化行业的复杂工况,具备良好的密封性、防腐蚀性与防爆性能,可长期稳定工作。

无论是在高温、低温、潮湿、盐雾或含油气环境下,均能保持可靠运行,并符合严格的安全与行业标准。

  • 环境温度:-40 °C 至 +55 °C
  • 密封等级:IP65 / IP68(可选)
  • 材质:不锈钢或特种合金,具备耐腐蚀涂层
  • 防爆认证:符合 ATEX / Zone 1 要求

Operating Environment and Structure

The device is engineered for the harsh conditions of oilfield and petrochemical use, with strong sealing, corrosion resistance, and explosion-proof performance for long-term stable work.

It runs reliably in heat, cold, humidity, salt spray, or oil-gas atmospheres, meeting strict safety and industry standards.

  • Ambient temperature: -40 °C to +55 °C
  • Sealing grade: IP65 / IP68 (optional)
  • Material: stainless steel or alloy with anti-corrosion coating
  • Explosion-proof: ATEX / Zone 1 compliant
