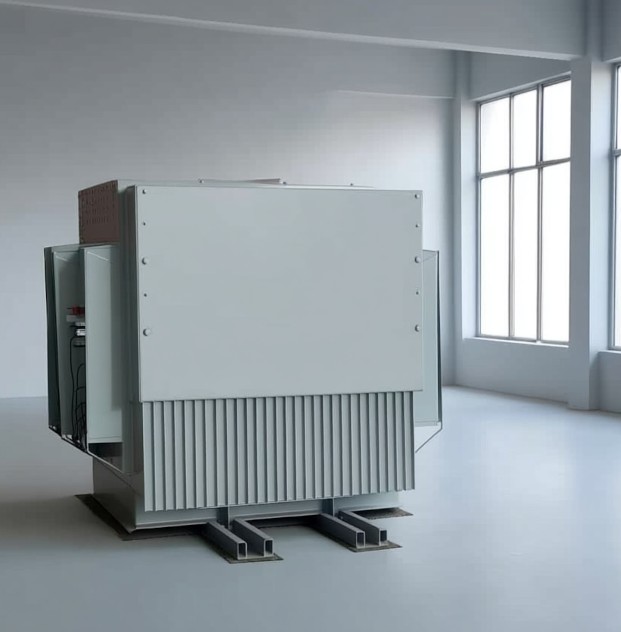

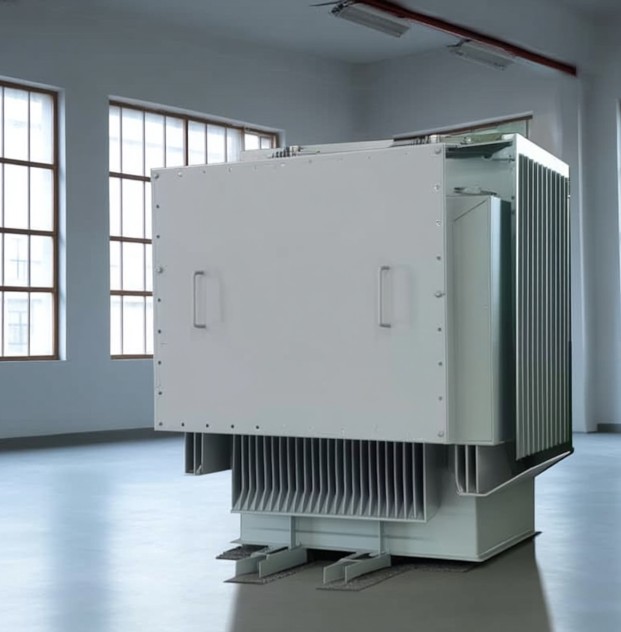

潜油电泵专用变压器

Submersible Pump Transformer

潜油电泵专用变压器
高效驱动

本产品作为潜油电泵系统的核心供电设备,具备高效、稳定和可靠的电能转换能力,为油田开采提供持续动力保障。

在设计与制造中充分考虑井下工况的复杂性,具备优良的过载能力和绝缘性能,确保潜油电泵长期稳定运行。

  • 高效能量转换,提升采油效率
  • 优良绝缘性能,保障运行安全
  • 抗过载设计,适应井下启动冲击
  • 长期可靠运行,满足油田工况

Submersible Pump Transformer
Efficient Drive

This transformer powers submersible pump systems, providing efficient, reliable conversion to sustain oilfield production.

Designed for tough downhole use, it offers overload capacity and strong insulation for long-term stable operation.

  • Efficient energy conversion for higher output
  • Excellent insulation for safe operation
  • Overload design for downhole start-up impact
  • Long-term reliability for oilfield use

电气性能参数
稳定与高效的核心指标

本产品在设计中充分考虑潜油电泵系统的运行需求,确保在长周期、高负载的条件下仍能保持稳定供电。

核心性能指标涵盖功率容量、电压等级、频率与绝缘水平,为油田开采提供可靠保障。

  • 额定功率范围:100–2500 kVA
  • 频率:50 Hz / 60 Hz
  • 输入电压:6 kV / 10 kV
  • 输出电压:1–5 kV(适配潜油电泵电机)

Electrical Parameters
Stable & Efficient

This product is designed for submersible pump systems, ensuring stable power even under long cycles and heavy loads.

Key metrics include power capacity, voltage level, frequency, and insulation, providing reliable support for oilfield operation.

  • Rated power: 100–2500 kVA
  • Frequency: 50 Hz / 60 Hz
  • Input voltage: 6 kV / 10 kV
  • Output voltage: 1–5 kV (for pump motors)

运行环境与结构参数

本产品在设计中充分考虑油田现场的复杂环境,具备良好的散热、防潮与绝缘性能,可在长期高负载条件下稳定运行。

无论是在高温、低温、干旱、盐雾或含尘环境中,设备均能保持可靠性能,并符合电力及石化行业的相关标准。

  • 冷却方式:ONAN / ONAF(油浸自冷或风冷)
  • 环境温度:-40 °C 至 +50 °C
  • 绝缘等级:F 级或更高
  • 防护等级:IP54 / IP55(可选)

Operating Environment and Structure

This product is designed for the harsh conditions of oilfields, with strong cooling, moisture resistance, and insulation to ensure stable operation under long-term heavy loads.

It performs reliably in heat, cold, arid, salt-spray, or dusty environments, meeting standards of the power and petrochemical industries.

  • Cooling: ONAN / ONAF (oil natural or air forced)
  • Ambient temperature: -40 °C to +50 °C
  • Insulation class: F or higher
  • Protection grade: IP54 / IP55 (optional)
